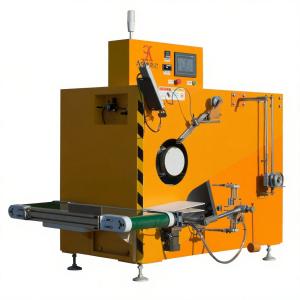

The PLC Smart Control Efficient Automatic Coil Winding Machine is a high-precision system designed specifically for PP motor coil winding in industrial manufacturing. Featuring smart PLC integration and a robust automatic design, this machine ensures steady, reliable operation, ideal for manufacturers who demand consistent performance, tight coil tolerances, and reduced labor input.
At the core of this system is a programmable logic controller (PLC) paired with servo-driven mechanics, offering precise control over winding speed, tension, coil dimensions, and layering patterns. This intelligent automation reduces human error and ensures repeatable quality, especially for polypropylene-insulated (PP) electric motor coils.
With fully automatic wire feeding, tension regulation, and coil cutting, the machine minimizes downtime and streamlines production workflows. Its optimized motion control guarantees smooth operation even at high speeds, while the vibration-resistant steel frame ensures long-term durability in continuous-use environments.
| Appearance and dimensions | 1950mm*1300mm*1600mm | Maximum winding diameter | 500MM |
|---|---|---|---|
| Machine weight | About 400KG | Rewind-up range | 8MM-20MM |
| Input power | 220V | Length of paper tube | ≤200MM |
| Maximum power | 2 KW | Equipment model | PPFA |
| Maximum operating pressure of the system | 0.8MPa | Minimum operating pressure of the system | 0.6MPa |
